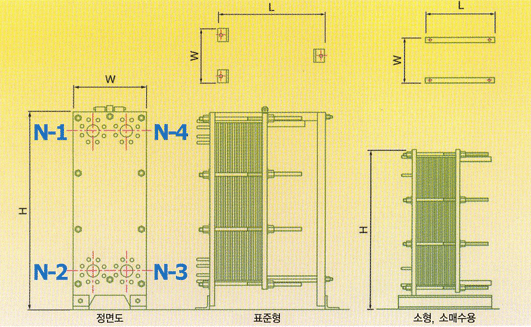

型式
MODEL |
전열면적
M²/PLATE |
처리량
M³/HR |
표준관경 |
폭
W |
높이
H |
길이(L) |
제품중량(kg)
50매조립기준 |
|
50枚 |
100枚 |
150枚 |
|
HX04 |
0.044 |
20 |
25A |
195 |
737 |
300 |
· |
· |
60 |
|
HX03 |
0.022 |
20 |
25A |
195 |
541 |
300 |
· |
· |
40 |
|
HX10 |
0.115 |
35 |
40A |
300 |
1021 |
380 |
· |
· |
170 |
|
HX15 |
0.08 |
35 |
40A |
300 |
817 |
380 |
· |
· |
140 |
|
HX13 |
0.06 |
35 |
40A |
300 |
694 |
380 |
· |
· |
110 |
|
HM10 |
0.14 |
50 |
50A |
332 |
988 |
380 |
· |
· |
210 |
|
HM13 |
0.08 |
50 |
50A |
332 |
792 |
380 |
· |
· |
160 |
|
HX20 |
0.26 |
100 |
80A |
460 |
1260 |
680 |
930 |
1180 |
400 |
|
HX23 |
0.13 |
100 |
80A |
460 |
959 |
680 |
930 |
1180 |
310 |
|
HX22 |
0.11 |
100 |
80A |
460 |
807 |
680 |
930 |
1180 |
240 |
|
HM30 |
0.22 |
170 |
100A |
550 |
1090 |
680 |
930 |
1180 |
480 |
|
HX40 |
0.46 |
200 |
100A |
550 |
1648 |
680 |
930 |
1180 |
660 |
|
HX45 |
0.3 |
200 |
100A |
550 |
1274 |
680 |
930 |
1180 |
510 |
|
HX43 |
0.21 |
200 |
100A |
550 |
1075 |
680 |
930 |
1180 |
490 |
|
HX42 |
0.148 |
200 |
100A |
550 |
895 |
680 |
930 |
1180 |
360 |
|
HX60 |
0.84 |
500 |
150A |
800 |
2200 |
1500 |
2000 |
2500 |
1580 |
|
HX65 |
0.49 |
500 |
150A |
800 |
1600 |
1500 |
2000 |
2500 |
970 |
|
HX62 |
0.36 |
500 |
150A |
800 |
1413 |
1500 |
2000 |
2500 |
820 |
|
HX80 |
1.1 |
700 |
200A |
920 |
2350 |
1500 |
2000 |
2500 |
2500 |
|
HX120 |
1.42 |
1500 |
300A |
1000 |
2850 |
2000 |
2500 |
3000 |
4900 |
|
HX125 |
0.81 |
1500 |
300A |
1000 |
2100 |
2000 |
2500 |
3000 |
3800 |
|
HX200 |
2.4 |
4000 |
500A |
1400 |
3500 |
2600 |
3200 |
3800 |
9800 |
|
|
|
 |
|
